Current location:Home --> MC Type Spring Mounts
MC Type Spring Mounts
MC Type Spring Mounts
Product Description:
Characteristic:? The springs are designed with low natural frequencies and treated with ED and paint.? The springs are heat treated and stress relieved for long service life.? The body is treated with Dak rust.? Bottom anti-skid and anti-chattering bolt design, high safety.? It is simple to install and can adjust height and level according to actual nee…
MASSAGECONTACT
Introduction

Characteristic:

? The springs are designed with low natural frequencies and treated with ED and paint.
? The springs are heat treated and stress relieved for long service life.
? The body is treated with Dak rust.
? Bottom anti-skid and anti-chattering bolt design, high safety.
? It is simple to install and can adjust height and level according to actual needs.
? It can eliminate mechanical structural vibration and protect and extend the mechanical life.
? The load deflection is 25mm.

Application:

? All kinds of heavy machinery.
? Ice main unit, cooling tower
? fire pump, exhaust fan.
? Generators, air compressors.

MC Type Spring Mounts

model



Load range

kg



Coefficient of spring

Kg/mm



Applicable deflection

mm

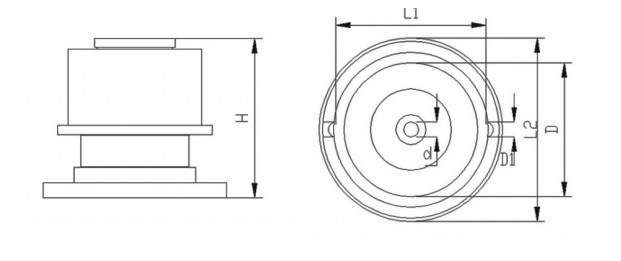

size mm



H



D



L1



L2



d



D1

MC-030

20-30

1.2

25

105

103

100

120

12

10

MC-050

30-50

2.0

25

105

103

100

120

12

10

MC-070

50-80

2.8

25

105

103

100

120

12

10

MC-090

80-100

3.6

25

105

103

100

120

12

10

MC-120

100-130

4.8

25

105

103

100

120

12

10

MC-150

130-150

6.0

25

105

103

100

120

12

10

MC-180

150-180

7.2

25

110

103

100

120

12

10

MC-250

200-250

10.0

25

110

103

100

120

12

10

MC-350

250-350

14.0

25

110

103

100

120

12

10

MC-480

460-500

19.2

25

110

140

135

165

14

14

MC-640

600-650

25.6

25

110

140

135

165

14

14
